Azure App Configuration with Key Vault Integration 🚀

A comprehensive guide to setting up Azure App Configuration with Azure Key Vault for secure configuration management.

Table of Contents 📑

Overview
Prerequisites
Step 1: Create Azure Resources
Step 2: Add Configuration Values
Step 3: Integrate with Key Vault
Step 4: Access Configuration in C#
References

Overview

This tutorial demonstrates how to:

Set up Azure App Configuration for centralized configuration management
Store sensitive data securely in Azure Key Vault
Use Key Vault references in App Configuration (best practice for secrets)
Access configuration values from a C# application using managed identity

Prerequisites

Azure CLI installed and configured
An active Azure subscription
PowerShell (commands use PowerShell syntax)
.NET SDK for the C# code sample
Appropriate permissions to create Azure resources

Step 1: Create Azure Resources 🏗️

Create Resource Group

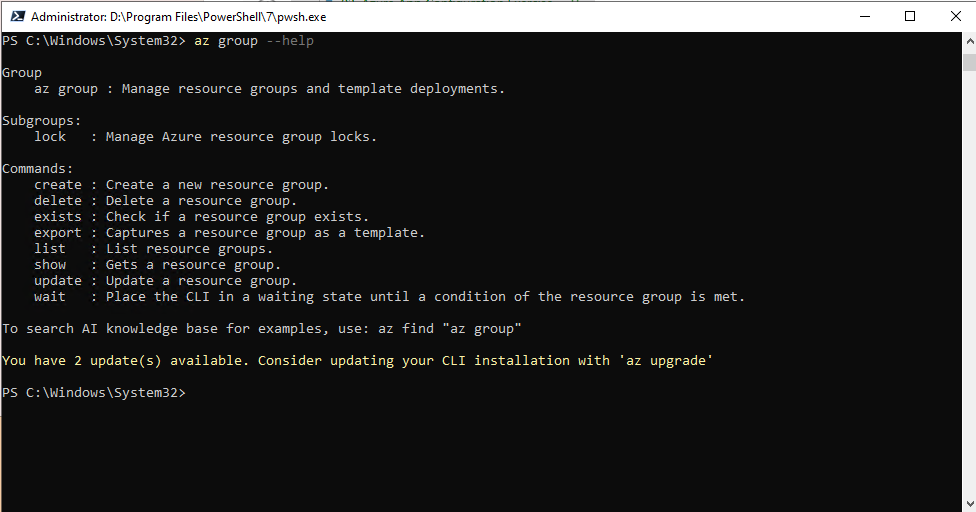

Resource groups are logical containers for Azure resources. Use the az group commands to manage them:

az group create --name samples-testmc-rg-itn-01  --location italynorth
az group list -o table
az group delete --name samples-rg-testnc-01 --yes --no-wait

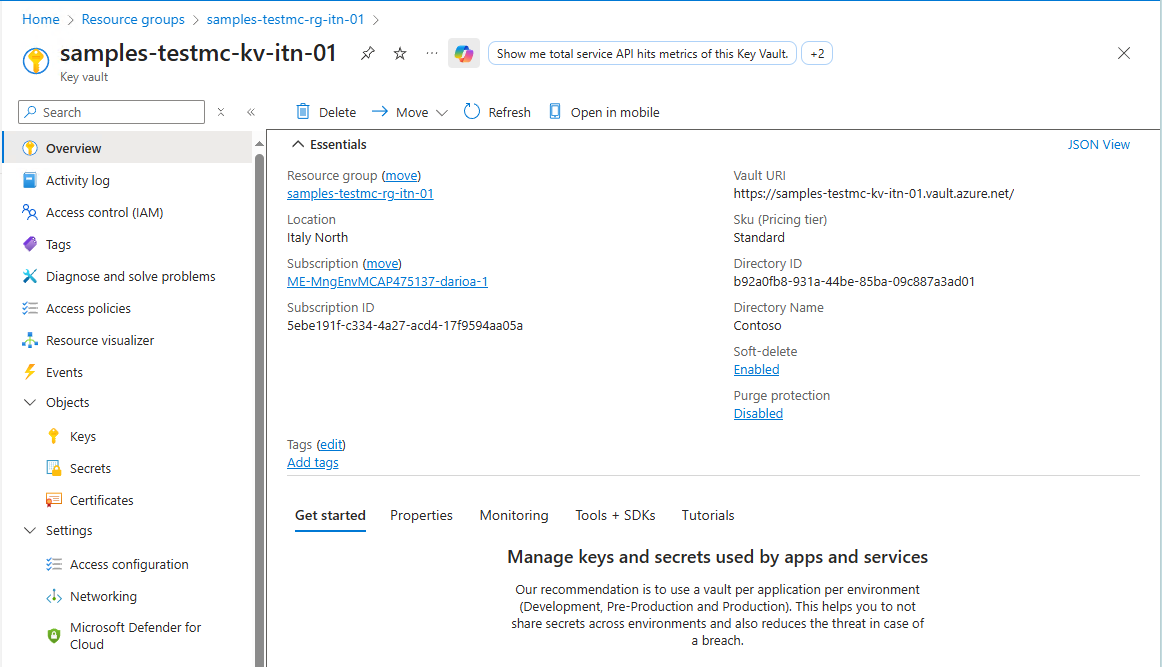

Create Azure Key Vault

Azure Key Vault is used to securely store secrets like connection strings. Create a Key Vault and grant yourself permissions to manage secrets:

$keyVaultName='samples-testmc-kv-itn-01'

az keyvault create --name $keyVaultName --resource-group $resourceGroup --location $location

# Grant yourself access to set secrets
az keyvault set-policy --name $keyVaultName --upn $userPrincipal --secret-permissions get list set delete

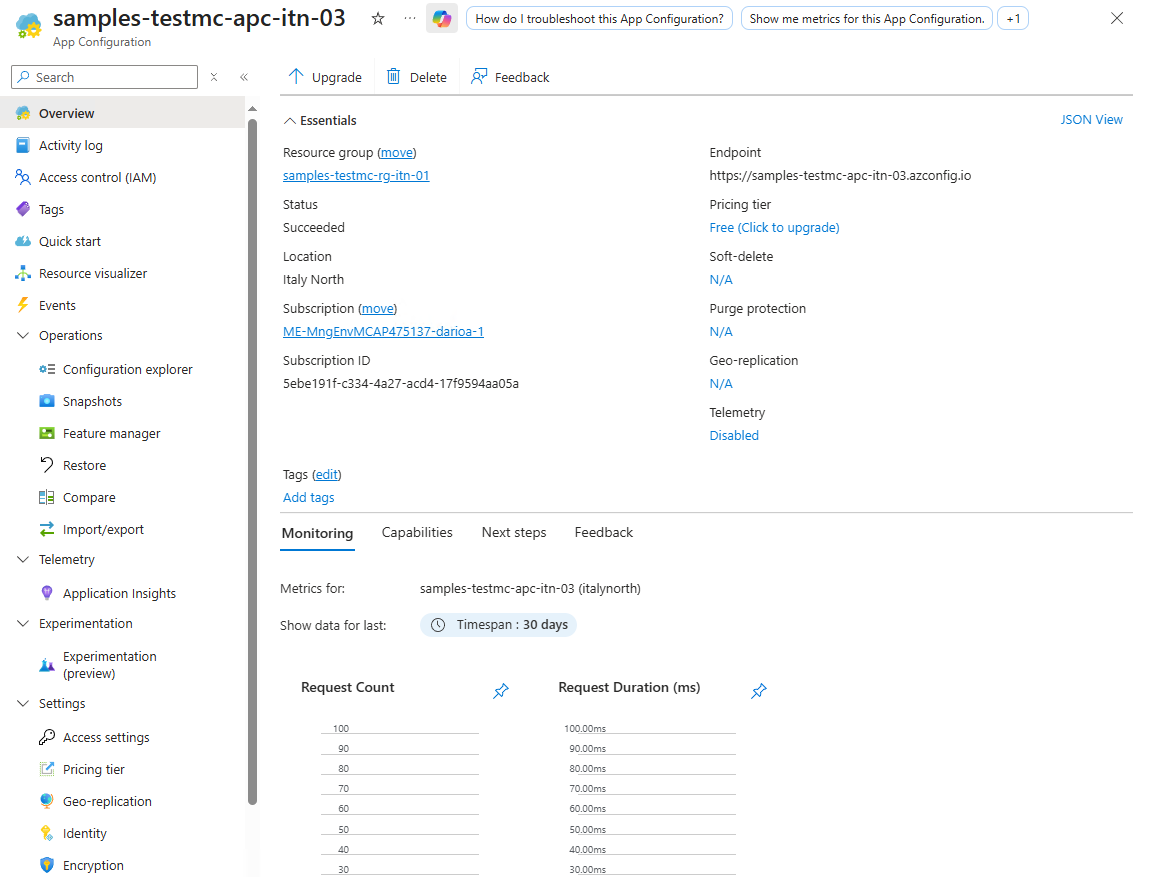

Create App Configuration Instance

Azure App Configuration provides centralized configuration management. The following commands register the provider and create an instance in the Free tier:

Use az appconfig create to create an Azure App Configuration instance in the Free tier:

$resourceGroup='samples-testmc-rg-itn-01'
$location='italynorth'
$appConfigName='samples-testmc-apc-itn-01'

az provider register --namespace Microsoft.AppConfiguration
az provider show --namespace Microsoft.AppConfiguration --query "registrationState"

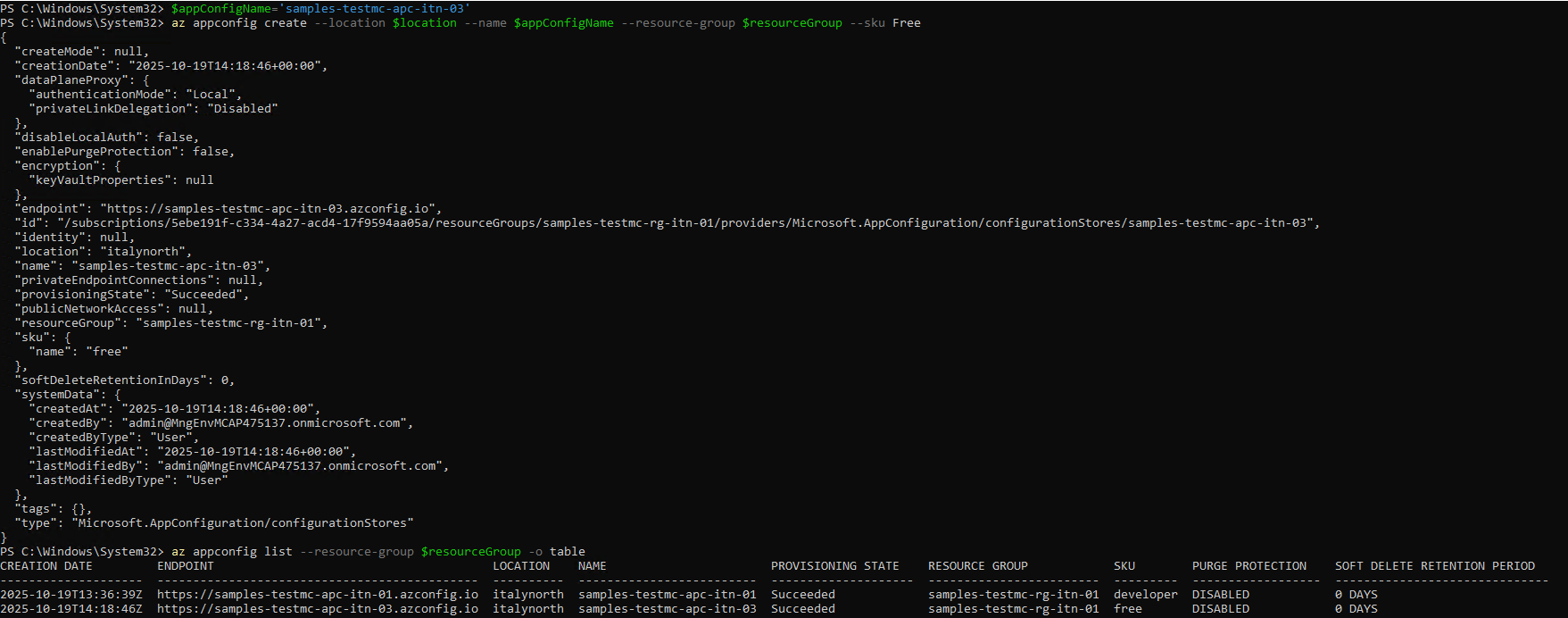

az appconfig create --location $location --name $appConfigName --resource-group $resourceGroup --sku Free

List App Configuration instances:

Use az appconfig list to list all Azure App Configuration instances in your resource group:

az appconfig list --resource-group $resourceGroup -o table

Assign permissions:

Use az role assignment create to assign the “App Configuration Data Reader” role to yourself, allowing you to read and manage its settings:

$userPrincipal=$(az rest --method GET --url https://graph.microsoft.com/v1.0/me --headers 'Content-Type=application/json' --query userPrincipalName --output tsv)

$resourceID=$(az appconfig show --resource-group $resourceGroup --name $appConfigName --query id --output tsv)

az role assignment create --assignee $userPrincipal --role "App Configuration Data Reader" --scope $resourceID

Step 2: Add Configuration Values ⚙️

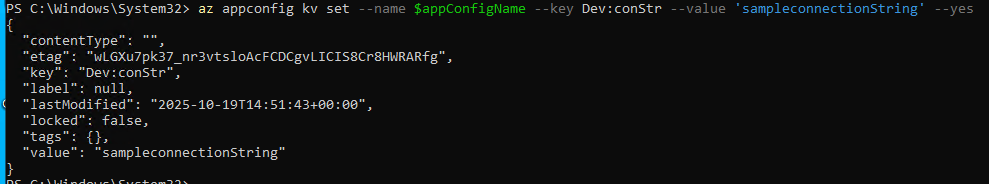

Use az appconfig kv set to add a new configuration setting with key “Dev:conStr” and a sample connection string value to the App Configuration instance:

az appconfig kv set --name $appConfigName --key Dev:conStr --value 'sampleconnectionString' --yes

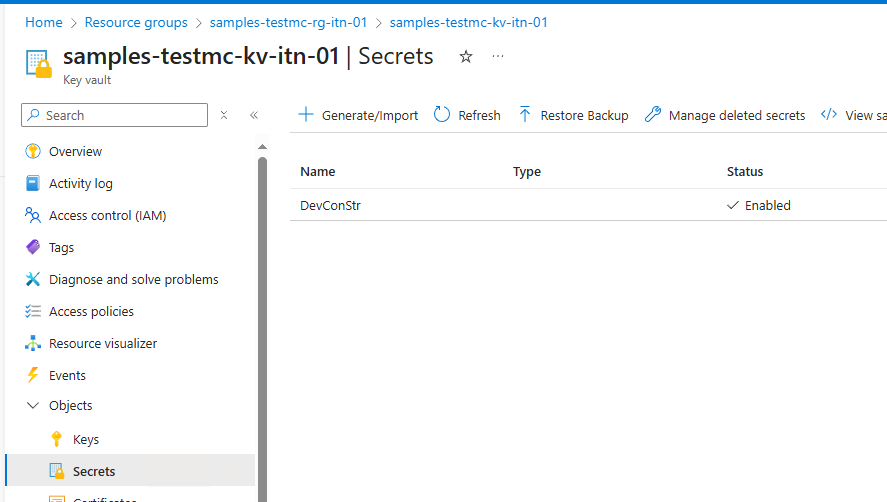

Step 3: add the connection string to Azure Key Vault and reference it from App Configuration

$connectionString='Server=tcp:myserver.database.windows.net,1433;Database=mydb;User ID=myuser;Password=mypassword;'

az keyvault secret set --vault-name $keyVaultName --name 'DevConStr' --value $connectionString

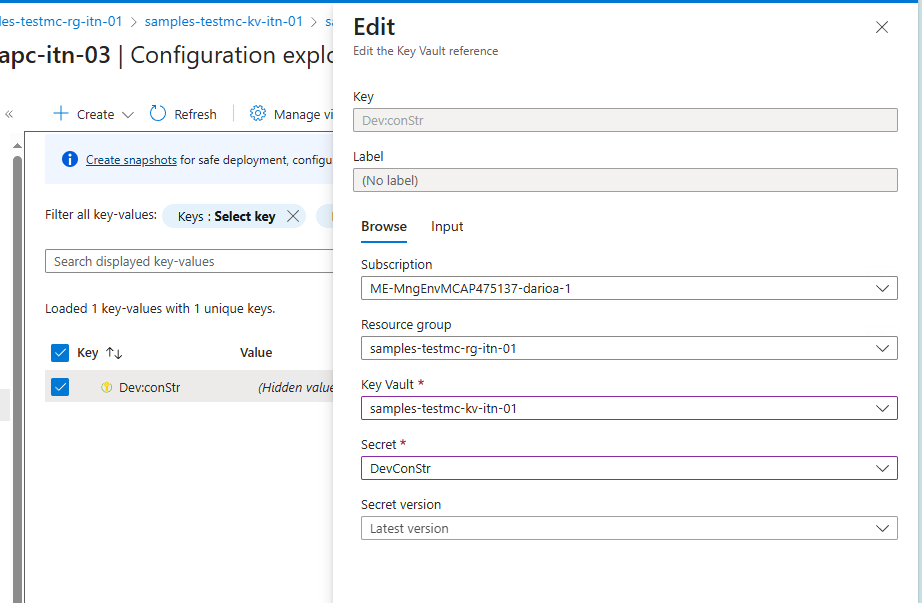

Reference Key Vault Secret from App Configuration

Get the secret URI:

$secretUri=$(az keyvault secret show --vault-name $keyVaultName --name 'DevConStr' --query id --output tsv)

Set the App Configuration secret reference to Key Vault:

az appconfig kv set-keyvault --name $appConfigName --key 'Dev:conStr' --secret-identifier $secretUri --yes

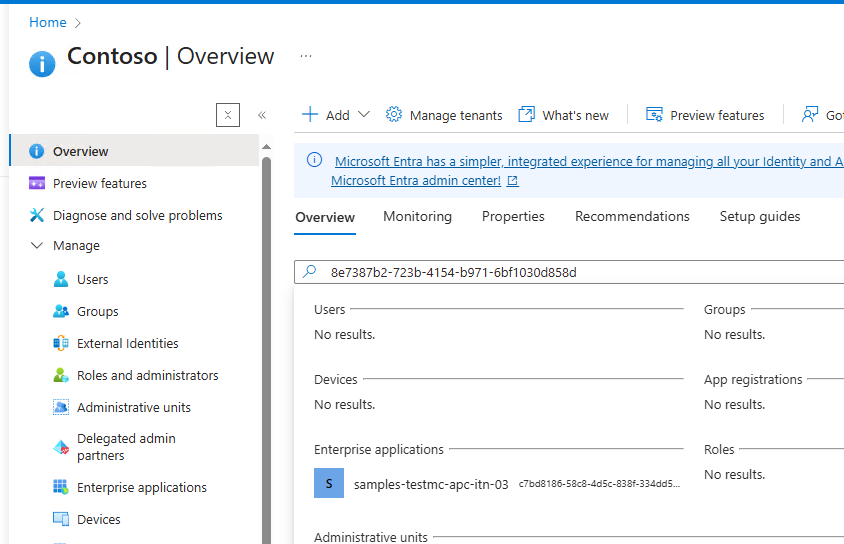

Configure Managed Identity

Enable managed identity for App Configuration:

az appconfig identity assign --name $appConfigName --resource-group $resourceGroup

Get the managed identity principal ID:

$principalId=$(az appconfig identity show --name $appConfigName --resource-group $resourceGroup --query principalId --output tsv)

Grant the managed identity access to Key Vault secrets:

az keyvault set-policy --name $keyVaultName --object-id $principalId --secret-permissions get

Step 4: Access Configuration in C# 💻

Use builder.AddAzureAppConfiguration to read the configuration value from Azure App Configuration in a C# application:

using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.Configuration.AzureAppConfiguration;
using Azure.Identity;

// Set the Azure App Configuration endpoint, replace YOUR_APP_CONFIGURATION_NAME
// with the name of your actual App Configuration service
string endpoint = "https://YOUR_APP_CONFIGURATION_NAME.azconfig.io";

// Configure which authentication methods to use
// DefaultAzureCredential tries multiple auth methods automatically
DefaultAzureCredentialOptions credentialOptions = new()
{
    ExcludeEnvironmentCredential = true,
    ExcludeManagedIdentityCredential = true
};

// Create a configuration builder to combine multiple config sources
var builder = new ConfigurationBuilder();

// Add Azure App Configuration as a source
// This connects to Azure and loads configuration values
builder.AddAzureAppConfiguration(options =>
{
    options.Connect(new Uri(endpoint), new DefaultAzureCredential(credentialOptions));
});

// Build the final configuration object
try
{
    var config = builder.Build();

    // Retrieve a configuration value by key name
    Console.WriteLine(config["Dev:conStr"]);
}
catch (Exception ex)
{
    Console.WriteLine($"Error connecting to Azure App Configuration: {ex.Message}");
}
