PROBLEM DESCRIPTION

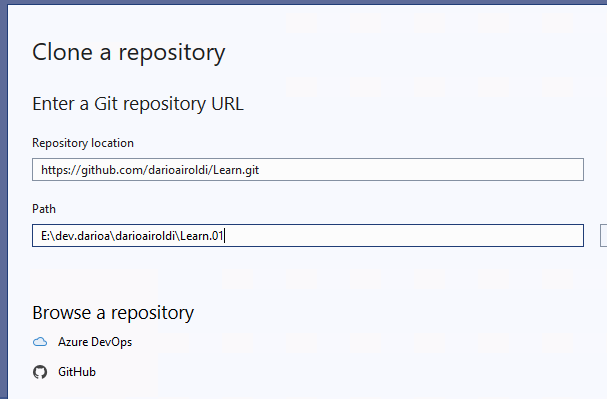

cloning a repository with Visual Studio fails with the following error:

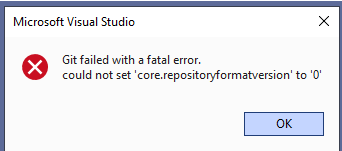

Clone repo	Fatal error

ANALYSIS

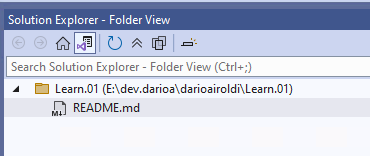

Visual studio has grants to the folder as I could create a file Visual Studio file access

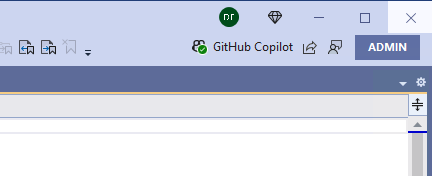

the issue also happens running visual studio with admin rights

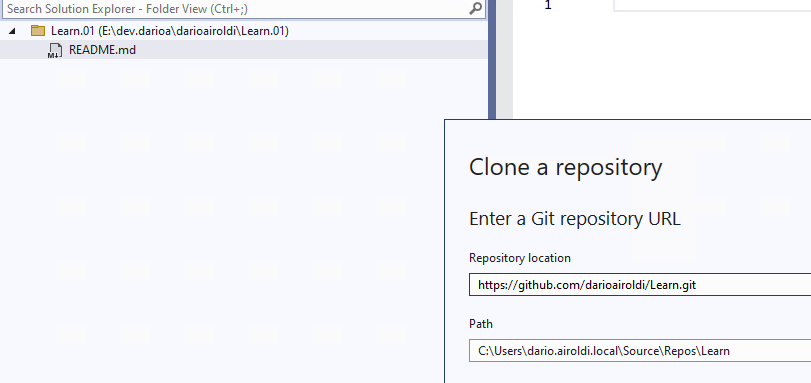

cloning the repo unders the user profile WORKS!

cloning it under drive e: fails as shown above.

SOLUTION

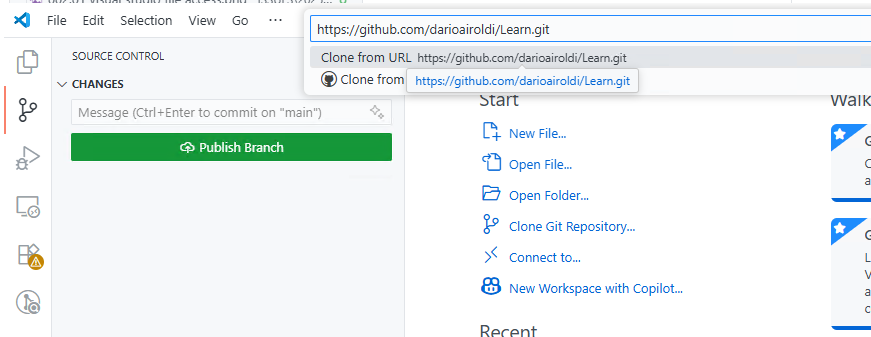

cloning the repo from the command line or by means of Visual studio code works fine!
alt text

ADDITIONAL INFORMATION

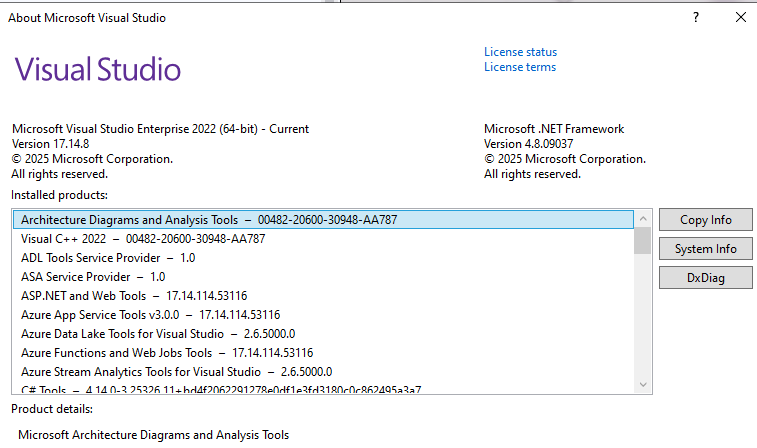

File System: E: drive is formatted with ReFS (Resilient File System)

ROOT CAUSE

The issue is caused by ReFS compatibility problems with Visual Studio’s Git integration:

ReFS vs NTFS: Visual Studio’s Git wrapper has known issues with ReFS file system
File System Calls: VS Git may use older Win32 APIs that don’t handle ReFS metadata correctly
File Locking: ReFS’s different file locking behavior conflicts with VS Git operations
Symbolic Links: ReFS handles symbolic links differently, which can confuse VS Git

WHY ALTERNATIVES WORK

Command Line Git: Uses standard Git binary with better ReFS support
VS Code: Uses standard Git binary, not Visual Studio’s wrapper
User Profile (C: drive): Typically formatted with NTFS, not ReFS

REFERENCES

Known Issues and Bug Reports

Visual Studio Developer Community: Git clone fails on ReFS drives
GitHub Issues: Search for Visual Studio ReFS Git issues in microsoft/visualstudio repository
Stack Overflow: Visual Studio Git operations on ReFS drives
Microsoft Tech Community: ReFS compatibility issues with Visual Studio

Solution Documentation

Alternative Git Clients (Recommended)

Git for Windows: Official Git for Windows - Works correctly with ReFS
VS Code Git Integration: Using Git source control in VS Code
Git Command Line: Git Documentation - Standard Git binary with ReFS support

Visual Studio Git Documentation

Visual Studio Git Experience: Git experience in Visual Studio | Microsoft Learn
Git Settings in VS: Git settings and preferences | Microsoft Learn

ReFS Technical Documentation

ReFS Overview: Resilient File System (ReFS) overview | Microsoft Learn
ReFS vs NTFS: ReFS vs. NTFS | Microsoft Learn
ReFS Architecture: ReFS architecture and performance | Microsoft Learn
ReFS Features: ReFS features | Microsoft Learn
